The ZyXEL GS1200-5HPV2-EU0101F switch is a managed switch designed for small to medium network environments requiring reliable and efficient connectivity. This device offers 5 Gigabit RJ-45 Ethernet ports (10/100/1000 Mbps) that provide fast and stable wired connections, ideal for office or home networks demanding high speed and low latency. The GS1200-5HP v2 stands out with a switching capacity of 10 Gbit/s, ensuring smooth data flow even in high-traffic settings. It features a MAC address table with capacity for 2000 entries, enabling advanced network management and efficient allocation of internal communication resources. Compatible with multiple network standards such as IEEE 802.3af, 802.3at (PoE), 802.3ab, 802.3u, 802.3x, 802.3az, and 802.3p, it guarantees operation with various technologies and protocols for energy optimization and flow control, including Power over Ethernet (PoE) to power devices directly from the switch without extra cables. Its construction includes a robust metal chassis in black and grey tones, combined with a power on/off switch, LED indicators, and USB ports for additional functions, providing durability and ergonomic installation. Furthermore, support for full duplex bidirectional communication enhances performance by allowing simultaneous data transmission and reception per port. This model is ideal for users seeking a professional, advanced, and versatile managed switch capable of supporting growing connection demands in distributed networks.

In summary, the ZyXEL GS1200-5HPV2 is a managed switch that combines speed, energy efficiency, and robustness, suitable for optimizing modern network infrastructures.

• Type of plug: Plug EU
• Product with plug: Yes
• Type:
  • Switch
  • Cupboard
• Ports:
  • 4
  • 5
• Speed:
  • 10/100/1000 Mbps
  • 1000 Mbps
• Connections:
  • RJ45
  • USB
  • Ethernet LAN
  • RJ45 x 5
• Certificate:
  • CE
  • FCC
• Approx. weight: 392 G
• Connectivity: Gigabit Ethernet
• Colour:
  • Black
  • Grey
• Material: Metal
• Characteristics:
  • On/off interrupter
  • LED indicator
• Holder: Multi-support
• Voltage: 220 V
• Height: 78 cm
• Screen: 24"
• Power:
  • 60 W
  • 72 W
• Working range for humidity: 10 % - 90 %
• Approx. temperature: -40º / 70º
• Safety: IGMP

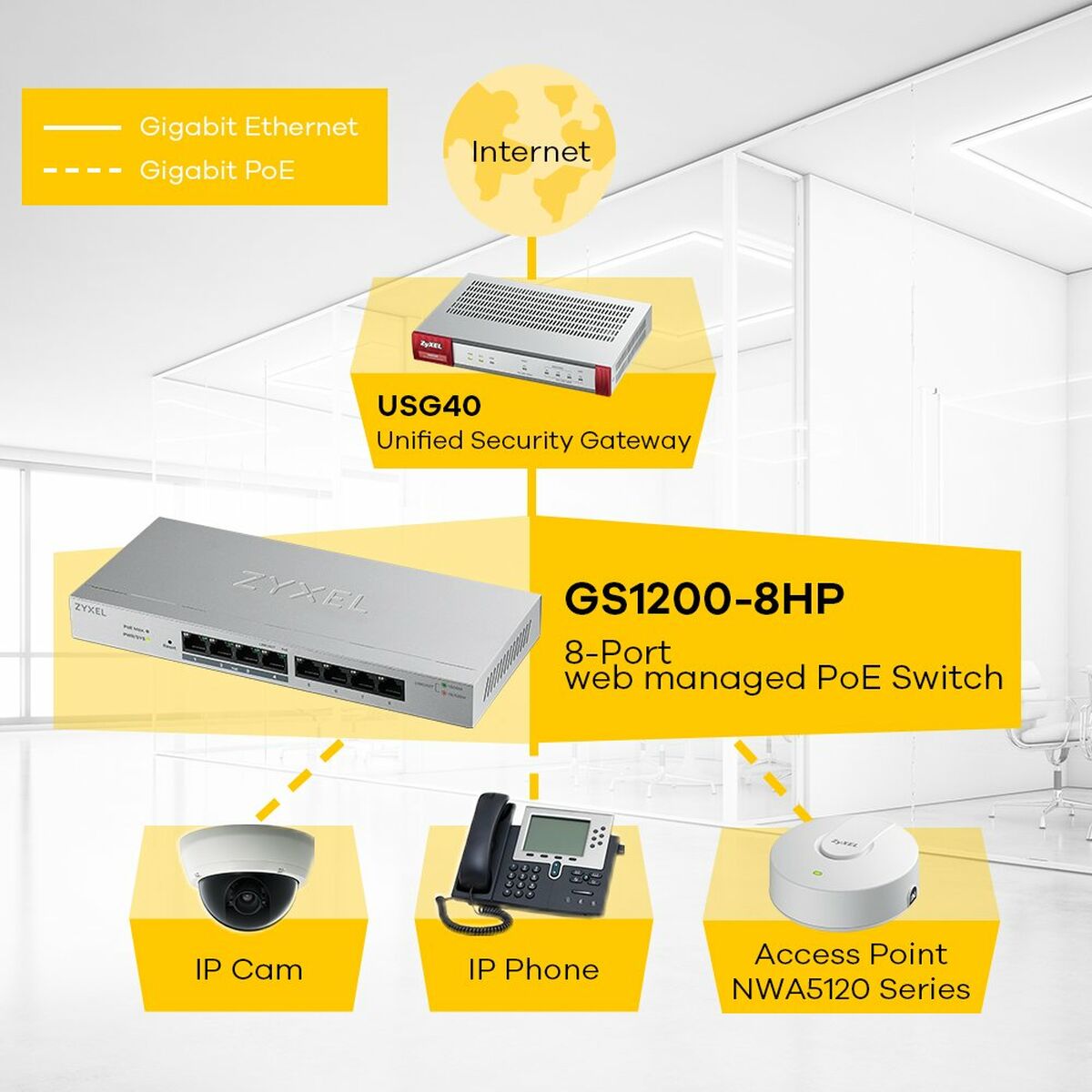

Web-managed PoE+ switches are now within reach for SMBs seeking more network controlThe GS1200 series of PoE+ switches features true web management, QoS and support for 802.3af and 802.3at PoE+ plus a user-friendly set-up interface. With essential power and value features built-in, it’s the right choice for small or remote offices deploying IP cameras, VoIP phone systems or wireless access points.Smart PoE+ 802.3af/802.3at supportThe GS1200 series supports the IEEE 802.3at standard, providing a maximum of 30 watts per port (with a max total power budget of 60 watts) to supply power to PoE network devices like wireless APs, IP cameras and VoIP phones. Web GUI management enables you to monitor the power status on each port and/or reboot the network devices, as needed.IGMP Snooping for optimized traffic deliveryBased on the IGMP (Internet Group Management Protocol) query and report messages, the switch forwards traffic only to the ports that request the multicast traffic rather than to all ports. It helps to optimize multicast performance and is especially useful for bandwidth-intensive IP multicast applications such as online media streaming and gaming.VLAN segregation for enhanced network securityVLAN (virtual local area network) can be used to separate traffic within a business such as isolating resources between network administrators and general users or between employees and public guest users.Enhanced port-based QoS for better traffic controlQoS (Quality of service) is the ability to provide different priority to different applications, users, or video/voice/data flows, or to guarantee a certain level of performance to a data flow.Link Aggregation increase throughputGS1200-5HP v2/GS1200-8HP v2 combines 2 physical ports together to make a single high-bandwidth data path, for faster file transfers and to enhance connection reliability.Easy web managementThis switch comes with a user-friendly web-based set-up interface that walks you through setup, configuration and management—including configuration backups and firmware upgrades—quickly and easily. With a few simple clicks, your network will be humming along, so you can get back to business.Advanced Energy-Savings at WorkThis switch’s built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffic and adjusts power consumption dynamically to reduce power usage during times of low traffic.Fanless, noiseless designExtend your network control and visibility without disrupting your quiet business environment. This business switch features a fanless design that ensures noiseless operation and greater reliability over time with fewer parts to fail.More comprehensive smart features includedFeaturing Gigabit performance that’s 10 times faster than Fast Ethernet. Deliver up to 2,000 Mbps of dedicated, non-blocking bandwidth per port and more advanced features like port mirroring, Jumbo Frame, broadcast storm control, loop detection/prevention. It’s a great choice for SMBs who want to enjoy high-speed business network applications!

• Switch type: Managed
• Quality of Service (QoS) support: Y
• Web-based management: Y
• Basic switching RJ-45 Ethernet ports quantity: 5
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Networking standards: IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3p,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
• 10G support: N
• Port mirroring: Y
• Full duplex: Y
• Flow control support: Y
• Link aggregation: Y
• Broadcast storm control: Y
• Auto MDI/MDI-X: Y
• VLAN support: Y
• Virtual LAN features: Port-based VLAN
• MAC address table: 2000 entries
• Switching capacity: 10 Gbit/s
• Store-and-forward: Y
• Jumbo frames support: Y
• Jumbo frames: 9000
• Packet buffer memory: 0.1 MB
• DHCP features: DHCP client
• IGMP snooping: Y
• Multicast support: Y
• Number of multicast groups filtered: 20
• Rack mounting: N
• Stackable: N
• Product colour: Grey
• Reset button: Y
• LED indicators: Link, PoE, Power
• On/off switch: Y
• Safety: LVD EN60950-1
• Certification: CE, FCC, C-Tick, Class A
• Firmware upgradeable: Y
• Output current: 1.3 A
• Power consumption (max): 72 W
• Power over Ethernet (PoE): Y
• Power over Ethernet (PoE) ports quantity: 5
• Power over Ethernet plus (PoE+) ports quantity: 4
• Total Power over Ethernet (PoE) budget: 60 W
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 10 - 90%
• Width: 193 mm
• Depth: 84 mm
• Height: 26 mm
• Weight: 392 g
• Package type: Box
• Package width: 210 mm
• Package depth: 132 mm
• Package height: 78 mm
• Package weight: 950 g
