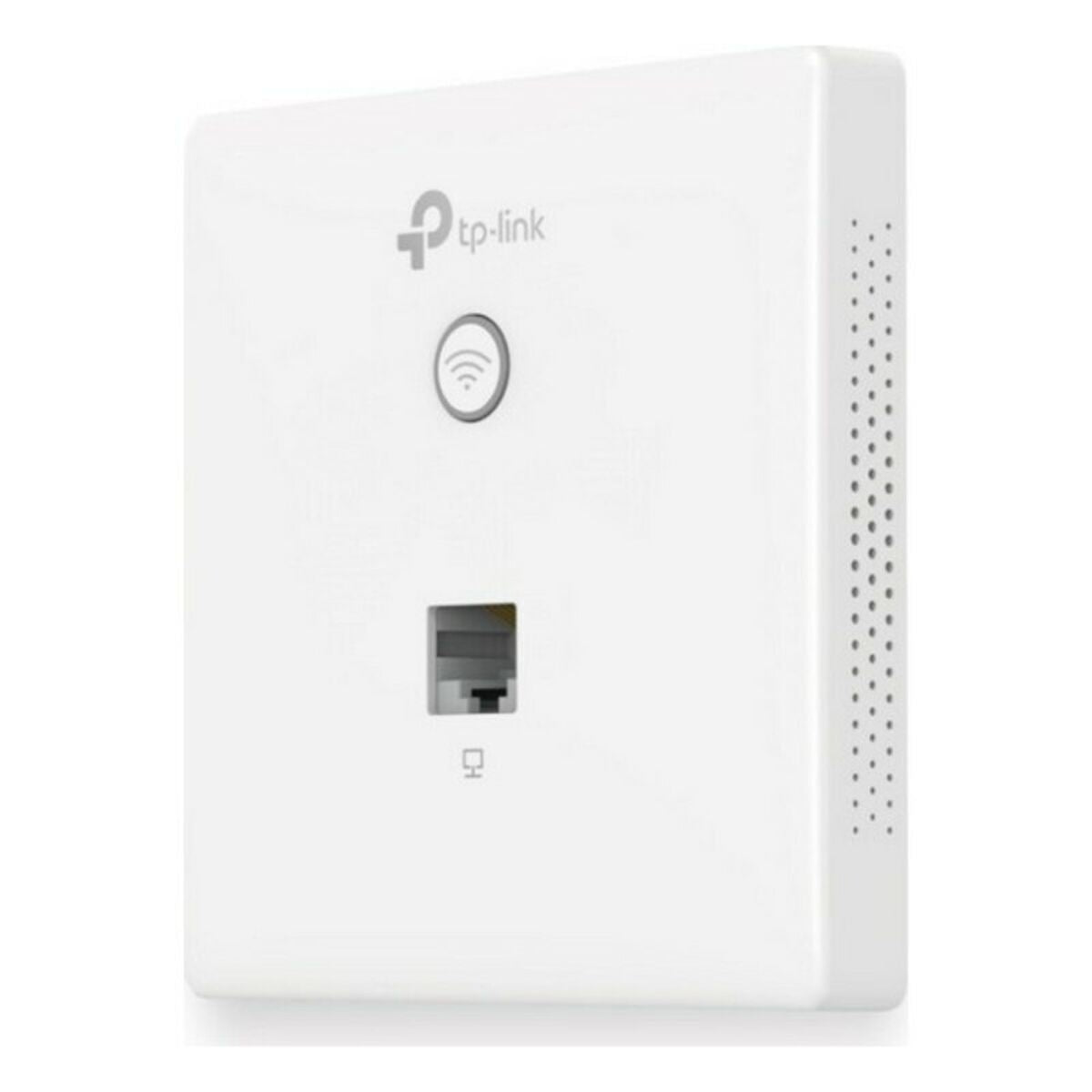

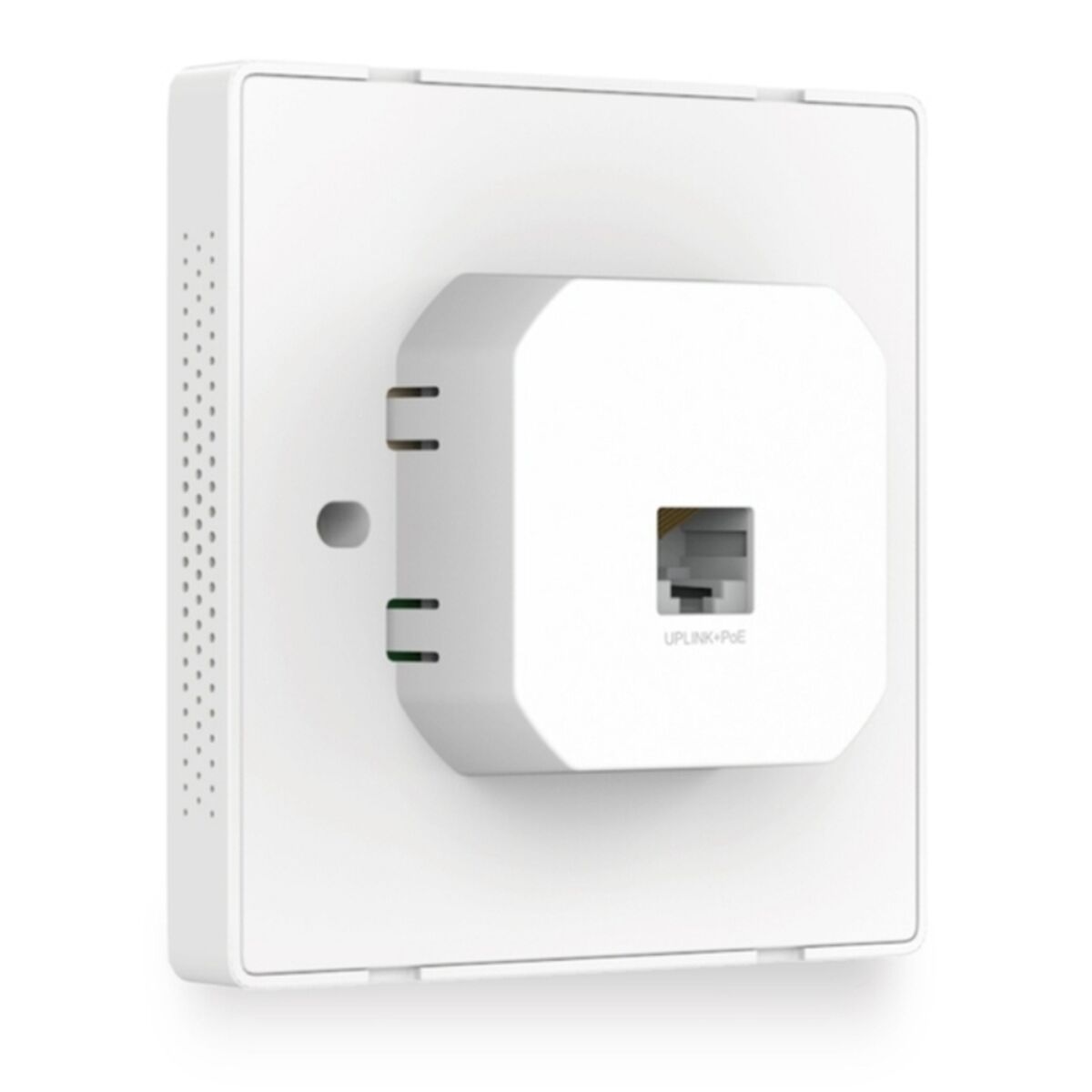

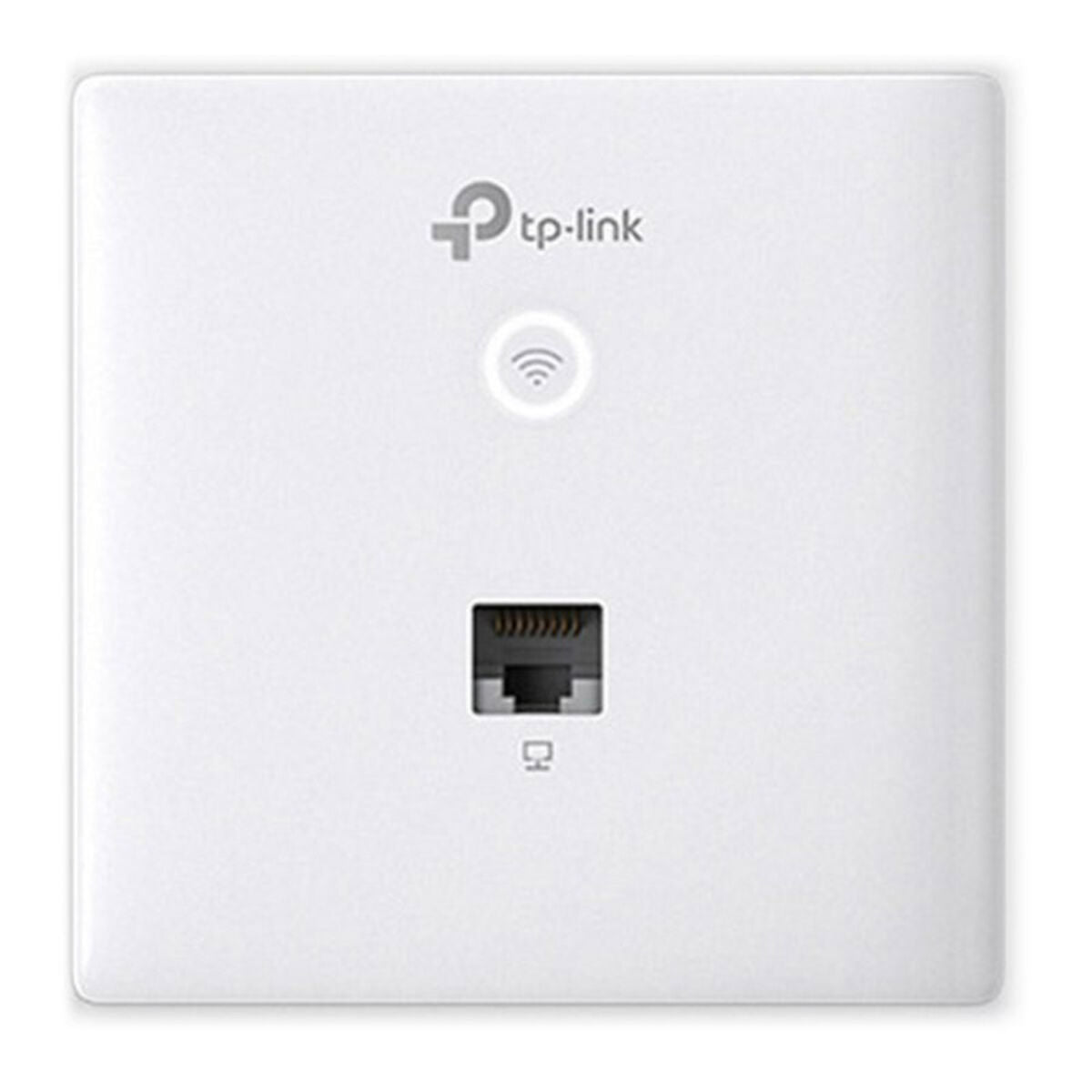

The EAP230-WALL by TP-Link is a professional wireless access point designed to deliver efficient, high-speed Wi-Fi connectivity in business, hospitality, and residential environments where reliable and discreet coverage is essential. Its white design allows for elegant wall integration, occupying minimal space and ensuring a clean installation, thanks to the included installation guide. This device features simultaneous dual-band technology, supporting speeds of up to 300 Mbps on the 2.4 GHz frequency and 867 Mbps on the 5 GHz band, providing a total capacity of up to 1200 Mbps—ideal for heavy data usage, streaming, and stable connections on busy networks. It offers 2 Gigabit Ethernet ports for fast wired connections and is fully compatible with the centralized management solution Omada SDN, making remote network administration and monitoring easy. Security features include support for algorithms such as WPA, WPA2-Enterprise, and multiple WEP encryption levels, ensuring all transmitted data is protected. The internal antenna system delivers up to 3.6 dBi gain, optimizing coverage and minimizing interference, while the LED indicator provides a visual reference of operational status. It operates with very low power consumption of just 7W and includes a USB 2.0 port for potential expansion or maintenance. Wall-mounting options, neutral color, and robust security architecture make this access point an excellent choice for those seeking a practical, powerful, and secure professional wireless connectivity solution.

• Characteristics:
  • LED indicator
  • Outdoors and weather-resistant
  • Wireless
• Energy consumption:
  • 7 W
  • 7 kWh
• Certificate:
  • CE - RoHS
  • CE & RoHS
• Speed:
  • 300-867 Mbps
  • 300 Mbps
  • 1 Gbps
  • 866 Mbps
• Type:
  • Access point
  • Wi-Fi repeater
• Type of plug: Plug EU
• Product with plug: Yes
• Connections:
  • RJ45 x 1
  • RJ45
  • PoE x 1
  • USB x 3
• Connectivity: Wi-Fi
• Colour: White
• Voltage: 220 V
• Frequency:
  • 2,4GHz
  • 5 GHz
  • 2,4 GHz
• Number of pieces: 2 Pieces
• Working range for humidity: 10 % - 90 %
• Approx. temperature: -40º / 70º

Unprecedented Thin Design with 11mmOmada EAP230-WallAC Access PointPrivate Connection for Every Room.EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user. MU-MIMO + Dual-Band: Faster Connection for More Devices802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various devices.Seamlessly Blends with any Décor The same size and shape as a light switch or power outlet faceplate to fit in perfectly in any room.High-Speed Gigabit PortEquipped with a Gigabit port to deliver the fastest possible wired transmission.Effortless Deployment with Power over Ethernet802.3af/802.3at PoE support means there’s no need for extra wiring. Plug in existing Ethernet cables to transmit both power and data to your APs.Quick, Simple Installation1.Detach and remove the faceplate of the junction box.2.Plug an Ethernet cable in to the port.3.Secure the Access Point to the wall using the provided screws.4.Press the faceplate back into position.Omada SDN—Smarter Cloud Solution for Business NetworkingOmada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.Easy Management with the Omada AppFollow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

• 2.4 GHz: Y
• 5 GHz: Y
• Maximum data transfer rate: 1000 Mbit/s
• Maximum data transfer rate (2.4 GHz): 300 Mbit/s
• Maximum data transfer rate (5 GHz): 867 Mbit/s
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Networking standards: IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
• Cabling technology: 10/100/1000Base-T(X)
• Automatic channel selection: Y
• VLAN support: Y
• Rate limiting: Y
• Quality of Service (QoS) support: Y
• Transmitting power (CE): 20 - 23 dBm
• Security algorithms: 64-bit WEP,128-bit WEP,152-bit WEP,SNMP,SNMPv2,WPA,WPA-PSK,WPA2-Enterprise,WPA2-PSK
• MAC address filtering: Y
• Number of SSID supported: 16
• Access Control List (ACL): Y
• Secure File Transfer Protocol (SFTP) using SSH v2: Y
• Web-based management: Y
• Syslog: Y
• Ethernet LAN (RJ-45) ports: 1
• Power over Ethernet (PoE): Y
• Power consumption (typical): 7 W
• Placement: In-wall
• Product colour: White
• LED indicators: Operation
• Certification: CE, RoHS
• Antenna type: Internal
• Antennas quantity: 2
• Antenna gain level (max): 3.6 dBi
• Compatible operating systems: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
• Operating relative humidity (H-H): 10 - 90%
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Storage relative humidity (H-H): 5 - 90%
• Width: 86.8 mm
• Depth: 30.2 mm
• Height: 86.8 mm
• Number of products included: 2 pc(s)
