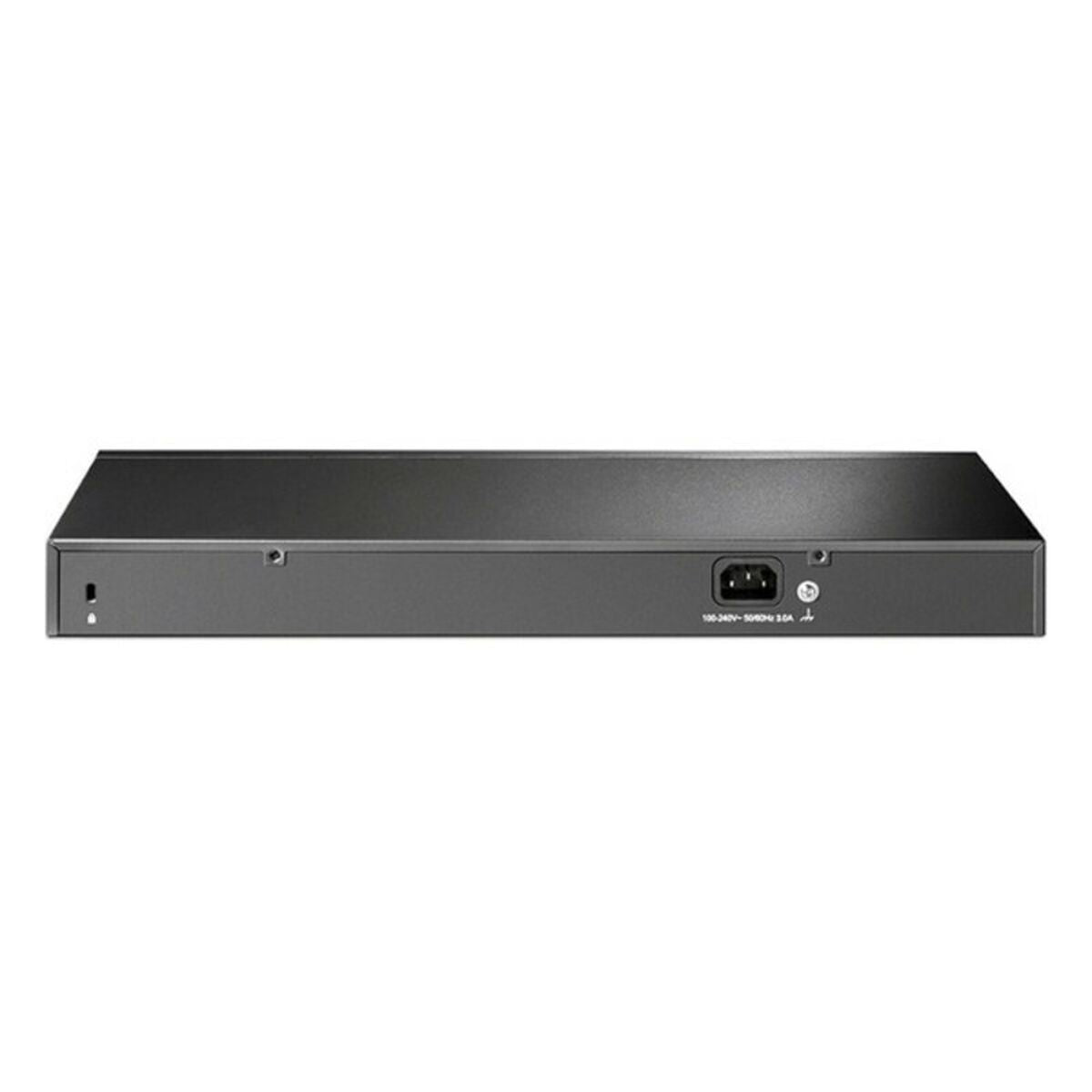

The TP-Link TL-SG1218MPE managed switch is a professional solution designed for network environments requiring high capacity, flexibility, and advanced management, featuring 16 Gigabit Ethernet RJ45 ports with PoE+ support under IEEE 802.3af/at standards. This allows powering devices such as IP cameras, access points, or VoIP phones directly via network cable, with a total PoE power budget of up to 192W. The model includes 2 SFP slots for fiber optic connectivity, ideal for network expansion or uplinks. With a switching capacity of 36 Gbps and a MAC address table supporting up to 8,000 entries, it ensures efficient handling of high traffic volumes and stable performance even in demanding business installations. Housed in a robust metal case and designed for 19” 1U rack mounting, it is ideal for professional cabinets and technical rooms, offering durability and easy integration into existing infrastructures. The switch features VLAN (by port, MTU, and tagging), quality of service (QoS), IGMP Snooping for multicast traffic optimization, and intuitive web management options, providing full network control and efficient resource management. It is compatible with a wide range of network standards, facilitating integration with diverse equipment and architectures. Its black color design, 240V voltage compatibility, and use of a standard AC power cable make it suitable for European environments. Overall, the TP-Link TL-SG1218MPE is a balanced and reliable choice for business networks and projects requiring centralized PoE power and advanced switching capabilities.

• Product with plug: Yes
• Type of plug: Plug EU
• Type:
  • Switch
  • Cupboard
• Connections:
  • RJ45
  • Ethernet LAN
• Speed: 1 Gbps
• Colour: Black
• Voltage:
  • 240 V
  • 100 - 240 V
• Ventilator: 2
• Power supply:
  • CA cable
  • Iincluded
• Number of slots: 2
• Rated power: 192 W
• Ports: 16
• Certificate: CE, FCC, RoHS
• AC input frequency: 50-60 Hz
• Width: 44 cm
• Working range for humidity: 10 % - 90 %
• Approx. temperature: -40º / 70º
• Safety: IGMP

Ideal for Surveillance
TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Intelligent Power Management
When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Making Management Easy
TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Ideal for SurveillanceTL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.Intelligent Power ManagementWhen total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.Making Management EasyTL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

• Switch type: Managed
• Web-based management: Y
• Basic switching RJ-45 Ethernet ports quantity: 16
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• SFP module slots quantity: 2
• Networking standards: IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
• 10G support: N
• Copper ethernet cabling technology: 10BASE-T,100BASE-TX,1000BASE-T
• Cable types supported: Cat3,Cat4,Cat5,Cat5e,Cat6
• Port mirroring: Y
• Link aggregation: Y
• Broadcast storm control: Y
• Rate limiting: Y
• Auto MDI/MDI-X: Y
• Auto-negotiation: Y
• VLAN support: Y
• Number of VLANs: 32
• Fiber ethernet cabling technology: 1000BASE-X
• MAC address table: 8000 entries
• Switching capacity: 36 Gbit/s
• Forwarding rate: 23.8 Mpps
• Store-and-forward: Y
• Number of queues: 4
• Jumbo frames support: Y
• Jumbo frames: 9000
• Packet buffer memory: 4.1 MB
• IGMP snooping: Y
• Rack mounting: Y
• Product colour: Black
• Number of fans: 2 fan(s)
• Certification: CE, FCC, RoHS
• Power supply included: Y
• AC input voltage: 100 - 240 V
• AC input frequency: 50/60 Hz
• Power consumption (max): 217.22 W
• Power over Ethernet (PoE): Y
• Power over Ethernet plus (PoE+) ports quantity: 16
• Total Power over Ethernet (PoE) budget: 192 W
• Operating temperature (T-T): 0 - 50 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Heat dissipation: 741.15 BTU/h
• Width: 440 mm
• Depth: 180 mm
• Height: 44 mm
• Cables included: AC
• User guide: Y
• Rack mount kit: Y
• Package width: 528 mm
• Package depth: 250 mm
• Package height: 80 mm
• Package weight: 2.91 kg
